MV Airo 2 Heater Parts

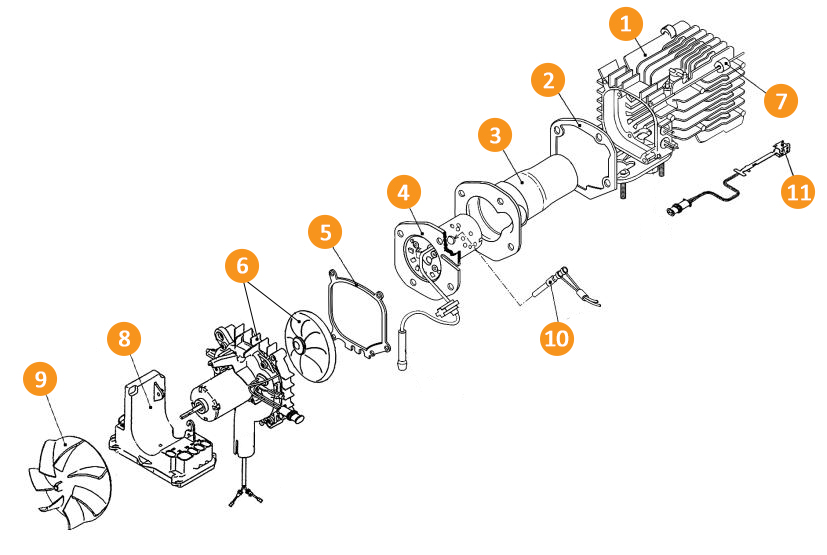

Exploded Heater Parts Diagram

mv airo 2 exploded diagram
      1. Heat Exchanger Assembly
      3. Combustion Chamber
      5. Gasket 2
      7. Insulating Bush
      9. Fresh Air Fan
      11. Overheat Sensor
      2. Gasket
      4. Burner Assembly
      6. Fan Motor Assembly
      8. ECU
      10. Glow Pin

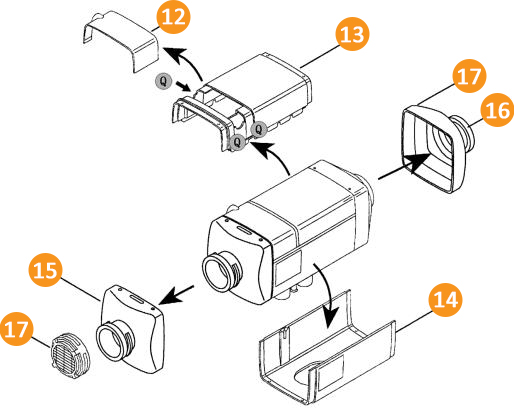

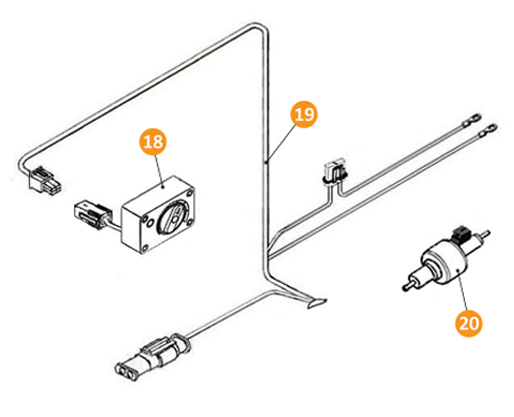

airo 2 extras diagram
      12. Junction Box Cover
      13. Top Case
      14. Bottom Case
      15. Inlet Cover
      16. Outlet Cover
      17. Grill
      18. Control Switch
      19. Main Wiring Harness
      20. Fuel Pump
