MV Hydro 5 Heater Parts

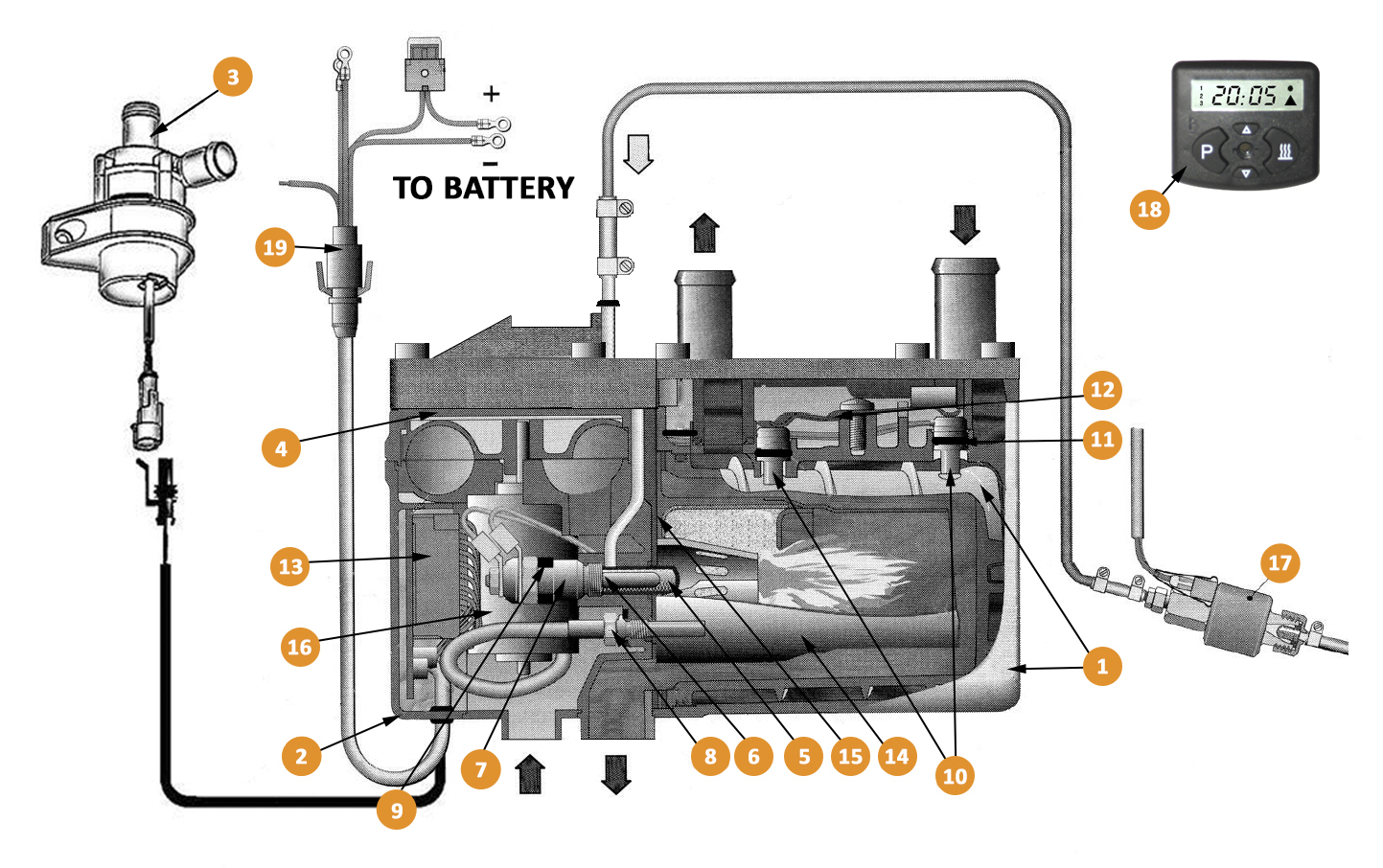

Exploded Parts Diagram

      1. Heat Exchanger Assembly
      2. Base Cover
      3. Water Pump
      4. Fan Cover
      5. Glow Pin Lining
      6. Glow Pin
      7. Glow Pin Housing
      8. Flame Sensor
      9. Holder
      10. Temperature and Overheat Sensor
      11. Temperature and Overheat Sensor 'O' Rings
      12. Leaf Spring
      13. E.C.U.
      14. Combustion Chamber
      15. Combustion Chamber Seal
      16. Air Motor
      17. Fuel Pump
      18. Timer Control
      19. Main Wiring Harness
