MV Airo 2 Parts

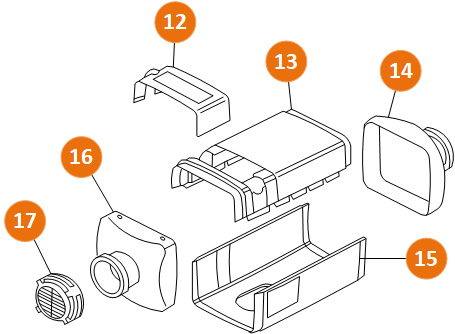

Exploded Heater Parts Diagram

      1. Heat Exchanger Assembly - Part No: A2Z-001
      3. Combustion Chamber - Part No: A2Z-003
      5. Gasket 2 - Part No: A2Z-005
      7. Insulating Bush - Part No: A25Z-007
      9. Fresh Air Fan - Part No: A2Z-010
      11. Overheat Sensor - Part No: A25Z-016
      2. Gasket - Part No: A2Z-002
      4. Burner Assembly - Part No: A2Z-004
      6. Fan Motor Assembly - Part No: A2C-006(12V)/A2A-006(24V)
      8. E.C.U. - Part No: A2C-009(12V)/A2A-009(24V)
      10. Glow Pin - Part No: A2C-014(12V)/A2A-014(24V)
      12. Junction Box Cover - Part No: A2Z-024
      13. Top Case - Part No: A2Z-025
      14. Bottom Case - Part No: A2Z-026
      15. Inlet Cover - Part No: A2Z-027
      16. Outlet Cover - Part No: A2Z-027
      17. Grill - Part No: A2Z-029
